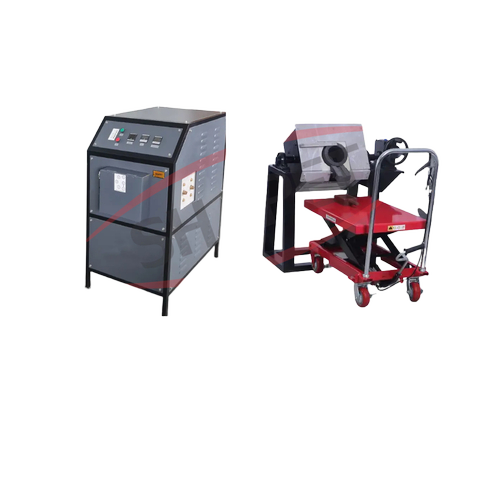

Induction Copper Melting Furnace

Product Description

• Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying.
• Economical, Efficient and Simple in Operation.
• Energy saving flameless device and also 80% income tax depreciable.
• Does not affect room temperature. Can also work in a/c showrooms.
• Heat and power loss reduced.
• Works on 3 Phase connection.

• Technology: IGBT Based.
• Power Supply & Voltage: 3 Phase 415 Volts A/C, 50/60 Hz.
• Absorbed Power: 10 KW/H.
• Capacity of Crucible: 2.5 Kgs. Copper.
• Maximum Temperature & Type: 1200⁰ Degrees, "K" Type.
• Melting Time: 8 to 10 Minutes.
• Cooling Water Temperature: 20⁰ to 35⁰ Degrees.
• Water Pressure & Flow: 4 Bar, 4 Litres/Minute.
• Machine Weight: Approx 72 Kgs.
• Chiller Weight: Approx 45 Kgs.
• Machine Size (LxWxH): Approx 56 x 51 x 82 (cms).
• Chiller Size (LxWxH): Approx 56 x 51 x 81 (cms).
