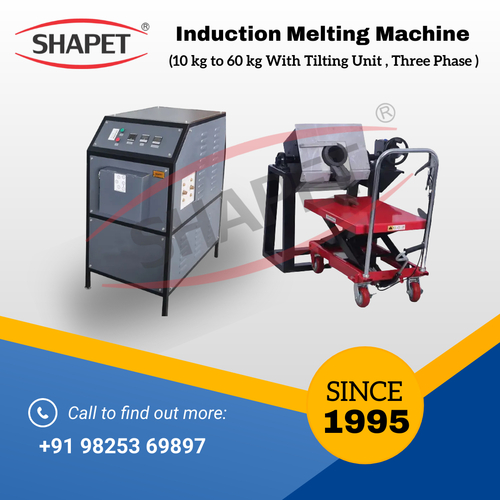

Induction Based Gold Melting Machine 20 kg. With Tilting Unit

Product Description

• Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying.
• Economical, Efficient and Simple in Operation.
• Energy saving flameless device and also 80% income tax depreciable.
• Does not affect room temperature.
• Heat and power loss reduced.
• Works on 3 Phase connection.
• Provides controlled pouring of metal due to manual tilting unit.
• Metal can be added easily during the melting process for continuous melting operation.

• Technology: IGBT Based.
• Power Supply & Voltage: 3 Phase 440 Volts A/C
• Absorbed Power: 16 KW/H.
• Capacity of Crucible: 20 Kgs. Gold.
• Maximum Temperature & Type: 1200⁰ Degrees, "K" Type.
• Melting Time: 12 to 15 Minutes.
• Cooling Water Temperature: 35⁰ Degrees Max.
• Machine Weight: Approx 79 Kgs.
• Chiller Weight: Approx 130.5 Kgs.
• Tilting Weight: Approx 60 kgs.
• Machine Size (LxWxH): Approx 80 x 60 x 113 (cms).
• Chiller Size (LxWxH): Approx 84 x 59 x 105 (cms).
• Tilting Size (LxWxH): Approx 84 x 62 x 92 (cms).
