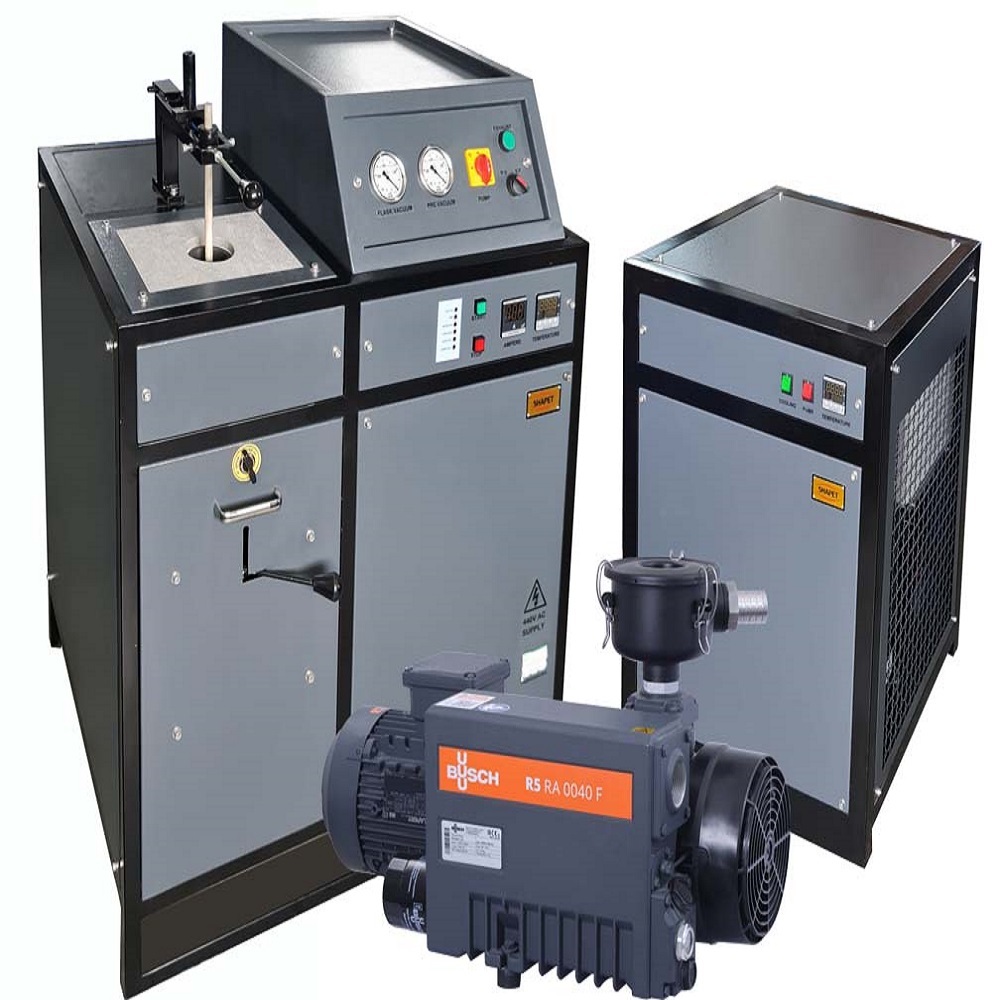

Induction Based Gold Casting Furnace

Product Description

• Accurate Casting Temperature Controlling.
• Advantage of Vacuum Casting hence Optimal Results.
• All Safety Precautions Provided.
• Consistent Quality Of Casting.
• Creative And Innovative Technology.
• Instant Heating With finger tip Controls.
• Less oxidation Casting Due to Bottom pouring Technology.
• Reduced Casting Expenses.
• Useful for both Casting & Melting.
• Safe, Fast , Economical, Efficient and Simple in Operation.
• Energy saving flameless device and also 80% income tax depreciable.
• Heat and power loss reduced.

• Technology: IGBT Based.
• Power Supply & Voltage: Three Phase 415 Volts A/C
• Absorbed Power: 6 KW/H.
• Capacity of Crucible: 2 Kg Gold.
• Maximum Temperature & Type: 1200⁰ Degrees, "K" Type.
• Melting Time: 8 to 10 Minutes.
• Cooling Water Temperature: 20⁰ to 35⁰ Degree.
• Machine & Chiller Weight: Approx 145 Kgs.
• Pump Weight: Approx 51 kgs.
• Machine Size (LxWxH): Approx 82 x 61 x 103 (cms).
• Chiller Size (LxWxH): Approx 56 x 51 x 81 (cms).
• pump Size (LxWxH): Approx 63 x 25 x 36 (cms).
