Copper Melting Machine with Tilting Unit

Copper Melting Machine with Tilting Unit

410000.0 INR/Unit

Get a Price/Quote

Product Details:

Product Type induction Based Melting
General Use Gold/Silver Melting
Computerized No
Automatic Yes
Control System Other
Cooling Mode Water Cooling
Working Temperature 1150 Celsius (oC)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Copper Melting Machine with Tilting Unit Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 300000.00 - 500000.00 INR/Unit
Price 410000.0 INR/Unit

Copper Melting Machine with Tilting Unit Product Specifications

Wire Dimension 3 Core
Control System Other
Computerized No
Feature Simple Control High Performance ECO Friendly High Efficiency Lower Energy Consumption Low Noise
Cooling Mode Water Cooling
Warranty 1 Year
General Use Gold/Silver Melting
Color Gray
Automatic Yes
Working Temperature 1150 Celsius (oC)
Product Type induction Based Melting
Power Supply 3 Phase 440 Volts A/C

Copper Melting Machine with Tilting Unit Trade Information

FOB Port Kandla Port
Supply Ability 10 Unit Per Week
Delivery Time 1 Week
Sample Policy Contact us for information regarding our sample policy
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

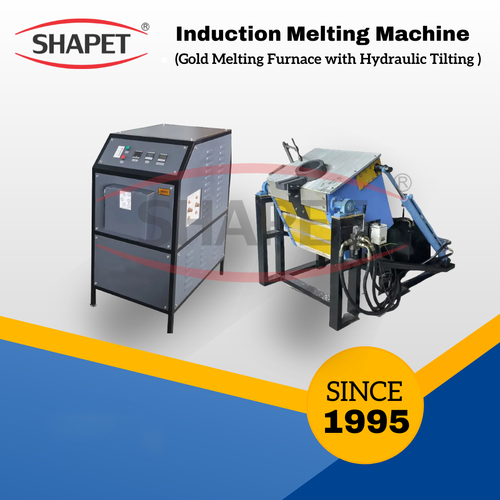

Induction Based Copper Melting Furnace 12.5 Kg. With Tilting Unit

Useful for:

High volume Industrial manufacturers, wire manufactures , Scrap Melting etc.
Product Features:

Perfect Homogeneous mixing due to auto stirring effect for increased productivity and perfect alloying.

Economical, Efficient and Simple in Operation.

Energy saving flameless device and also 80% income tax depreciable.

Does not affect room temperature.

Heat and power loss reduced.

Works on 3 Phase connection.

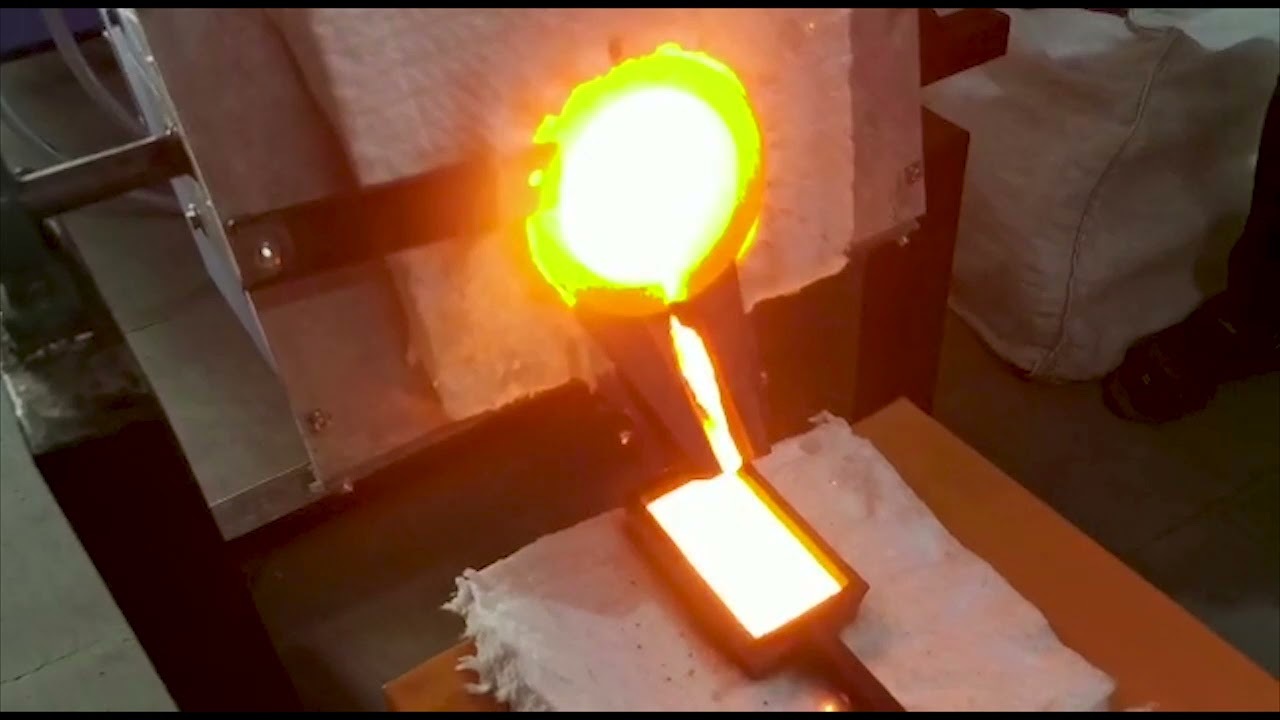

Provides controlled pouring of metal due to manual tilting unit.

Metal can be added easily during the melting process for continuous melting operation.

Technical Specifications:

Technology: IGBT Based.

Power Supply & Voltage: 3 Phase 440 Volts A/C

Absorbed Power: 20 KW/H.

Capacity of Crucible: 12.5 Kgs. Copper.

Maximum Temperature & Type: 1200⁰Degrees, "K" Type.

Melting Time: 15 to 20 Minutes.

Cooling Water Temperature: 35⁰Degrees Max.

Machine Weight: Approx 79 Kgs.

Chiller Weight: Approx 130.5 Kgs.

Tilting Weight: Approx 60 kgs.

Machine Size (LxWxH): Approx 80 x 60 x 113 (cms).

Chiller Size (LxWxH): Approx 84 x 59 x 105 (cms).

Tilting Size (LxWxH): Approx 84 x 62 x 92 (cms).
